Mud Soil Pressure Type

SELECT A MACHINE TYPE DEPENDING ON
THE CONSTRUCTION CONDITION.

(φ700 m/m to φ2200 m/m)

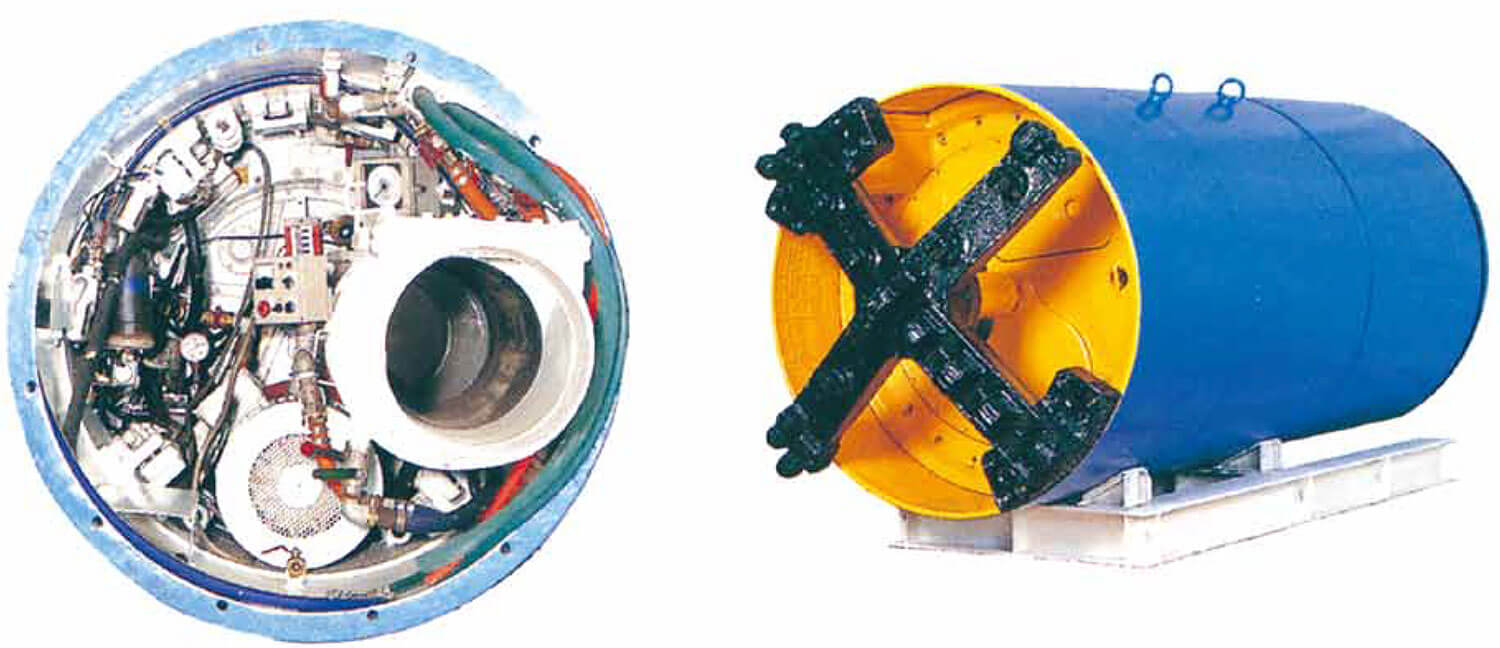

φ1200mm

Center Shaft Drive System

(φ800 m/m to φ1500 m/m)

The machine works effectively on soft and weak ground. It has an excellent stirring ability with cutter rotation speed of about 10/12 to 12/14 rpm/min (50 / 60Hz).

  • ・Cutter Driv e : Center Shaft System
  • ・Mud Discharge Bor e : 1/5 of Diameter

Application range of type of soil

Soft soil, ordinary soil , sand and gravel Maximum cobblestone diameter = 1/5 of pipe diameter or less

φ1200mm

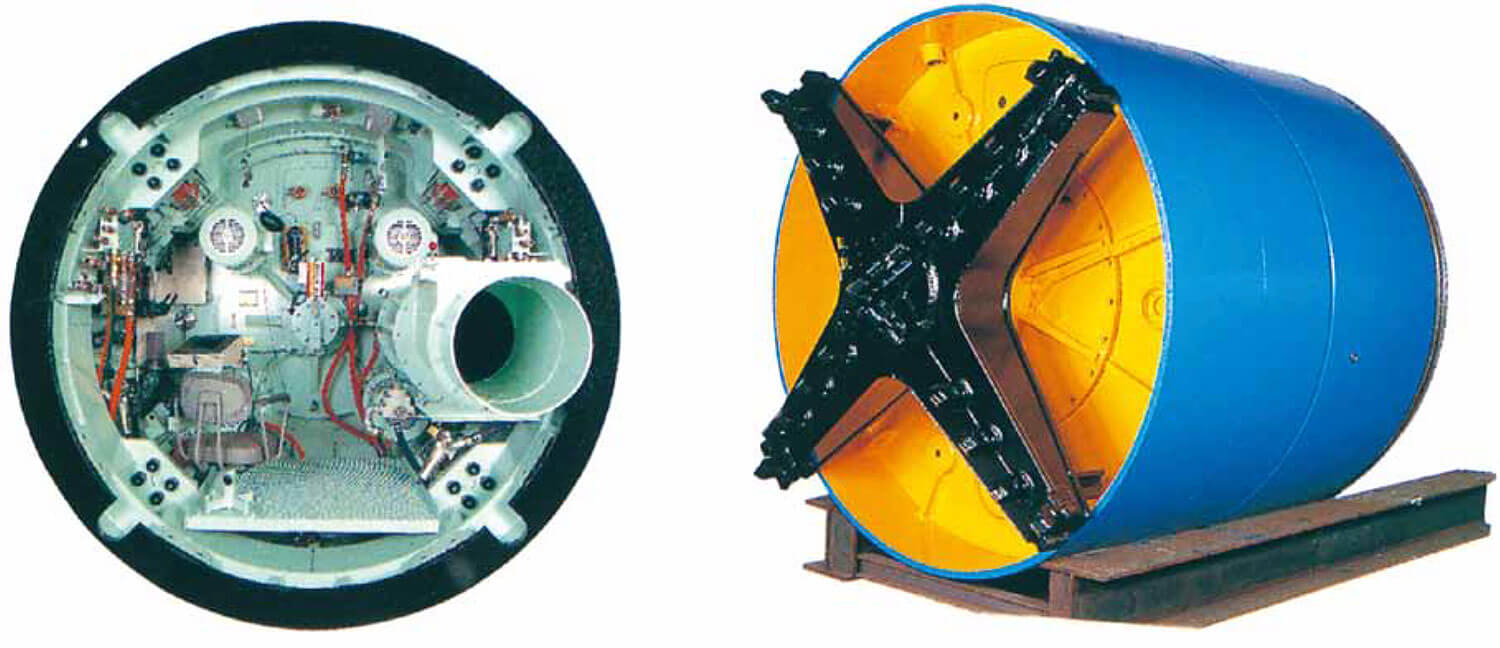

Edge Support Drive System

(φ800 m/m to φ1500 m/m)

The machine which is effective for gravel layer mixed with cobbl estones It has high level cutting capacity. The cutter rotation speed is about 7/8 to 9/1 1 rpm / min (50 / 60 Hz).

  • ・Cutter Driv e : Edge Support System
  • ・Mud Discharge Bor e : 1/3 of Diameter

Application range of type of soil

Soft soil, ordinary soil , sand and gravel Maximum cobblestone diameter = 1/3 of pipe diameter or less

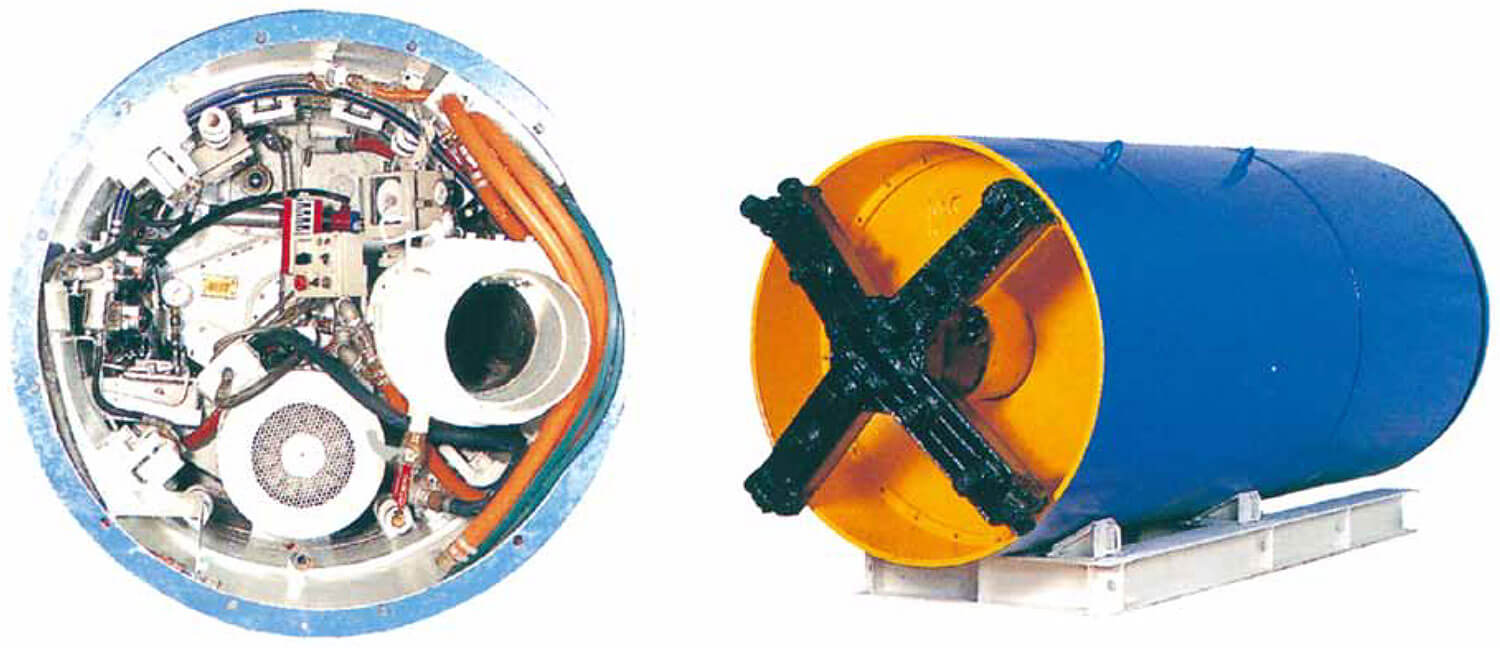

φ2200mm

Center Shaft Drive System

(φ1650 m/m to φ2200 m/m)

The new model machine can handle wide range from soft earth to gravel layer mixed with cobblestones.

  • ・Cutter Driv e : Center Shaft System
  • ・Mud Discharge Bore:1/5 to 1/4 of Diameter

Application range of type of soil

Soft soil, ordinary soil , sand and gravel Maximum cobblestone diameter = 1/5 to 1/4 of pipe diameter or less
